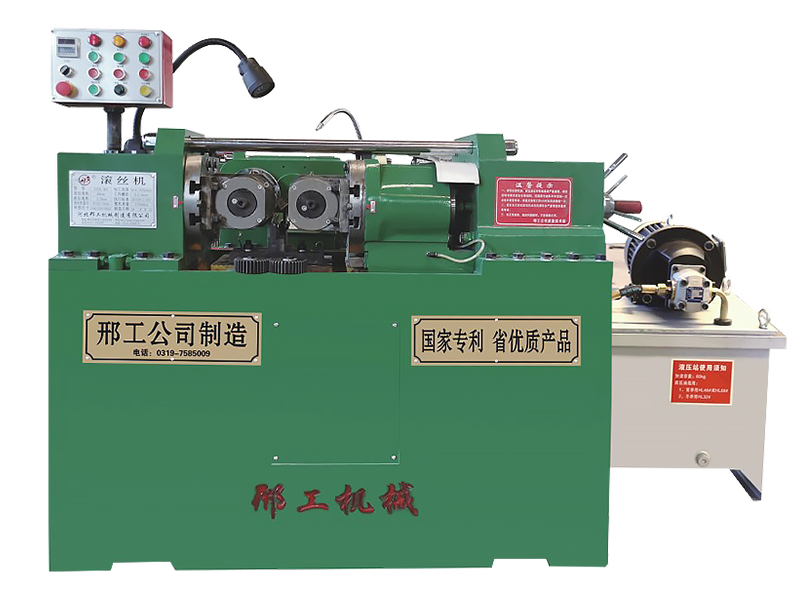

Z28-80 Thread Rolling Machine
This product can be processed both radially and axially. With the corresponding wire roller, it can process ordinary bolts, special-shaped bolts and through thread (tooth bar).
This machine can be based on user demand is equipped with automatic feeding device.
Keyword:
Tel：
Z28-80 Thread Rolling Machine
Introduction
With solid structure, convenient maintenance and reasonable price, this product is deeply welcomed by users. This product can be processed both radially and axially. With the corresponding wire roller, it can process ordinary bolts, special-shaped bolts and through thread (tooth bar). The through thread (tooth bar) produced by Zhejiang standard parts production base with this product has been exported to the United States, Canada, Europe and other developed countries.
This machine can be based on user demand is equipped with automatic feeding device.
Product Parameters
| Pressure of roller max | 150KN | Spindle speed | 36.47.60.78(r/min) |
| Working dia | φ4-φ48mm | Feed speed of movable shaft | 5mm/s |
| OD of roller | φ120-φ170mm | Thread length | unlimited |
| BD of roller | φ54mm | Main power | 4kw |
| Roller width max | 100mm | Hydraulic power | 2.2kw |
| Dip angle of main shaft | ±5° | Weight | 1700kg |
| Center distance of main shaft | 120-240mm | Size | 1480×1330×1440mm |
Related products
Z28-16 Three-axis Thread Rolling Machine
The machine tool is mainly composed of machine body, three sets of identical thread rolling shaft assemblies, three sets of identical sliding sleeve oil cylinder, hydraulic system, transmission mechanism, speed change mechanism, electrical system, cooling system, etc.
Applicable to diameter measurement in cold state φ 4- φ 36mm straight lines, threads and twills are rolled and formed, and the screw thread roller can be assembled to process the fixed thread and through thread (tooth bar).
This machine can be based on user demand is equipped with automatic feeding device.
The design structure is reasonable and firm, with large active force, low noise, low failure rate, convenient adjustment and no disorderly buckle. With high precision and wide application range, it can roll all kinds of external threads
This machine can be based on user demand is equipped with automatic feeding device.
Z28-80A Aneroid Thread Rolling Machine
It is a special equipment for processing Tongsi (tooth strip), which can be processed φ 4- φ 16mm through wire (tooth strip), especially for the processing of "tightening",can improve the effect of doubling.
This machine can be based on user demand is equipped with automatic feeding device.
Z28-260 Thread Rolling Machine
It is mainly used for rolling various precision external threads and high-strength standard parts, including ordinary threads, trapezoidal threads and modular threads.
This machine can be based on user demand is equipped with automatic feeding device.
The product has reasonable structure, excellent manufacturing and convenient adjustment. It can be processed radially or axially. It can process all kinds of threads, worms, modular splines, straight grain parts, reticulated parts, polished cylinders, arc bodies and all kinds of rectangular and arc grooves
